Fermi surface

The Fermi surface is visualized by XCrySDen [56]. When you perform calculations of the density of states by the following keywords:

  Dos.fileout                  on        # on|off, default=off
  Dos.Erange              -20.0  20.0    # default = -20 20
  Dos.Kgrid                 61 61 61     # default = Kgrid1 Kgrid2 Kgrid3

you will obtain a file *.FermiSurf0.bxsf, where * is System.Name, and the file can be visualized by XCrySDen [56]. As well as 'Dos.Fileout', 'DosGauss.fileout' can be also used for the purpose. In case of spin-polarized calculations, two files are generated as *.FermiSurf0.bxs and *.FermiSurf1.bxs for spin-up and spin-down states, respectively. In case of non-collinear calculations, a file *.FermiSurf.bxs is generated. It is noted that a large number of k-points should be used in order to obtain a smooth Fermi surface. As an example, Fermi surfaces of the fcc Ca bulk are shown in Fig. 42. The input file used for the calculation is 'Cafcc_FS.dat' in the direcoty 'work'.

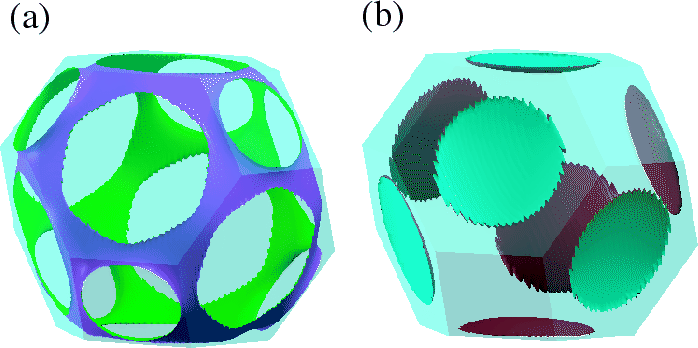

Figure: Fermi surfaces of the fcc Ca bulk visualized by XCrySDen [56]. Since two sorts of bands intersect with the Fermi energy (chemical potential), two Fermi surfaces are shown in (a) and (b). The input file used for the calculation is 'Cafcc_FS.dat' in the direcoty 'work'.
